Tranny id help

[j6824]

This isn't a T18, by chance? Out of an '87 Ford 1/2 ton pickup

Local seller...waiting on him to get me pics of the stamping, thought I'd ask while I waited

Shape doesn't look quite right to me, based off the pics I've seen...Novak, etc



[jp360cj]

The T18 doesn't have that pronounced butterfly shape on the bellhousing side. I don't think the NP435 has it either. And both of those transmissions have a PTO port on the passenger side.

IMO, it looks a lot like the T170 series Tremecs that Ford used. Not sure if they were still being used in '87 or not, but they are very similar to the T176/T177/T178 used in Jeeps.



[Lumpy Grits]

Compare to this.......
https://www.novak-adapt.com/

LG



[coldair]

This is an early ford T18 but the pattern is the same on the later ones.



[coldair]

IMO, it looks a lot like the T170 series Tremecs that Ford used. Not sure if they were still being used in '87 or not, but they are very similar to the T176/T177/T178 used in Jeeps.

The T170 was a top loader transmission. Ive been racking me brain trying to ID this transmission. Even googled cant seam to find out what it is.it could be a t176 that someone installed in a ford has the butterfly pattern



[jp360cj]

The T170 was a top loader transmission. Ive been racking me brain trying to ID this transmission. Even googled cant seam to find out what it is.it could be a t176 that someone installed in a ford has the butterfly pattern

Several versions of the T170 series were used in Fords. Some with external shift rail and some were a top shift. My money's still on a T170



[coldair]

Several versions of the T170 series were used in Fords. Some with external shift rail and some were a top shift. My money's still on a T170

I didn't know that they made a external shift rail on the t170.



[1980cj5]

Looks like the T176 in my CJ5.
Not positive!
Any other pictures?



[j6824]

Looks like the T176 in my CJ5.
Not positive!
Any other pictures?

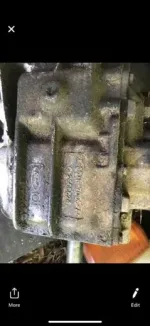

He just sent these...definitely not an 18

Not sure how to even begin to decode



[jp360cj]

He just sent these...definitely not an 18



Not sure how to even begin to decode

Do you have the actual picture instead of a screenshot of it? Can't make our all the numbers


Sent from my iPhone using Tapatalk
