I did but it was required for the EFI I installed on my 258. I would recommend a new sending unit with the 3/8 outlet that way you have 3/8 from tank to engine.
Sent from my E7110 using Tapatalk
Sent from my E7110 using Tapatalk
pablo fank
Jeeper
Thanks for the fast reply. As I said in my post, the fuel sending unit outlet is only 5/16" dia. Do you know of a sending unit for this tank that has a 3/8" dia. outlet?
Manic Mechanic
Full Time Jeeper
- Posts
- 1,574
- Thanks
- 355
- Location
- Thurmont MD
- Vehicle(s)
- 85 CJ7 4.2L 258 .040 over, T-5 trans, dana 300, dana 30 front 3.23 and lock right locker, rear amc 20 3.23 one piece axle shafts traclock
79 CJ7 304, th400 auto borgwarner 1389?? qudratrac stock rest unknown.
89 YJ 4.2L 258, AX-15 5spd, NP231, dana 30 front, dana 35 rear with posi, gears unknown
92 YJ 4.0, AX-15 5spd, np231, dana 30 front, dana 35 rear.
Give me a minute I'm looking
Sent from my E7110 using Tapatalk
Sent from my E7110 using Tapatalk
Manic Mechanic
Full Time Jeeper
- Posts
- 1,574
- Thanks
- 355
- Location
- Thurmont MD
- Vehicle(s)
- 85 CJ7 4.2L 258 .040 over, T-5 trans, dana 300, dana 30 front 3.23 and lock right locker, rear amc 20 3.23 one piece axle shafts traclock
79 CJ7 304, th400 auto borgwarner 1389?? qudratrac stock rest unknown.
89 YJ 4.2L 258, AX-15 5spd, NP231, dana 30 front, dana 35 rear with posi, gears unknown
92 YJ 4.0, AX-15 5spd, np231, dana 30 front, dana 35 rear.
I need to go through my records and see what I bought. In the meantime maybe someone else will chime in.
Sent from my E7110 using Tapatalk
Sent from my E7110 using Tapatalk
pablo fank
Jeeper
Thanks Manic. I'll be waiting for your reply.
CJ
Admin
- Posts
- 21,676
- Thanks
- 617
- Location
- Central FL
- Vehicle(s)
- '72 CJ5, 401, T18, D20, D44, D30
'82 CJ8, 258, D300, AMC20, D30
Are you going FI? Sounds like your using a carb.
You can get a replacement 3/8 stainless line kit like this one
1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8
1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8" (Oversized) Main Fuel Line 1pc, OE Steel
www.inlinetube.com
It's easy to pull your sender and bend up a 3/8 pickup tube, remove your old 5/16 tube, drill out the hole and weld in the new tube. You can also drill a new hole and have one 3/8 and one 5/16 pickups but only use the 3/8.
You can also ditch the mechanical pump, use the FI in tank pump and add a regulator.
Manic Mechanic
Full Time Jeeper
- Posts
- 1,574
- Thanks
- 355
- Location
- Thurmont MD
- Vehicle(s)
- 85 CJ7 4.2L 258 .040 over, T-5 trans, dana 300, dana 30 front 3.23 and lock right locker, rear amc 20 3.23 one piece axle shafts traclock
79 CJ7 304, th400 auto borgwarner 1389?? qudratrac stock rest unknown.
89 YJ 4.2L 258, AX-15 5spd, NP231, dana 30 front, dana 35 rear with posi, gears unknown
92 YJ 4.0, AX-15 5spd, np231, dana 30 front, dana 35 rear.
I bought one out the box with a 3/8 fuel outlet and 5/16 return for a CJ (no fuel pump attached)Are you going FI? Sounds like your using a carb.
You can get a replacement 3/8 stainless line kit like this one
and buy a replacement FI sending unit. The problem with the FI sending unit is that it has an in tank pump.1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8
1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8" (Oversized) Main Fuel Line 1pc, OE Steel
It's easy to pull your sender and bend up a 3/8 pickup tube, remove your old 5/16 tube, drill out the hole and weld in the new tube. You can also drill a new hole and have one 3/8 and one 5/16 pickups but only use the 3/8.
You can also ditch the mechanical pump, use the FI in tank pump and add a regulator.
Sent from my E7110 using Tapatalk
CJ
Admin
- Posts
- 21,676
- Thanks
- 617
- Location
- Central FL
- Vehicle(s)
- '72 CJ5, 401, T18, D20, D44, D30
'82 CJ8, 258, D300, AMC20, D30
Cool, wasn't sure if they made one. 15 years ago I had no choice but to mod mine...
Manic Mechanic
Full Time Jeeper
- Posts
- 1,574
- Thanks
- 355
- Location
- Thurmont MD
- Vehicle(s)
- 85 CJ7 4.2L 258 .040 over, T-5 trans, dana 300, dana 30 front 3.23 and lock right locker, rear amc 20 3.23 one piece axle shafts traclock
79 CJ7 304, th400 auto borgwarner 1389?? qudratrac stock rest unknown.
89 YJ 4.2L 258, AX-15 5spd, NP231, dana 30 front, dana 35 rear with posi, gears unknown
92 YJ 4.0, AX-15 5spd, np231, dana 30 front, dana 35 rear.
Manic Mechanic
Full Time Jeeper
- Posts
- 1,574
- Thanks
- 355
- Location
- Thurmont MD
- Vehicle(s)
- 85 CJ7 4.2L 258 .040 over, T-5 trans, dana 300, dana 30 front 3.23 and lock right locker, rear amc 20 3.23 one piece axle shafts traclock
79 CJ7 304, th400 auto borgwarner 1389?? qudratrac stock rest unknown.
89 YJ 4.2L 258, AX-15 5spd, NP231, dana 30 front, dana 35 rear with posi, gears unknown
92 YJ 4.0, AX-15 5spd, np231, dana 30 front, dana 35 rear.

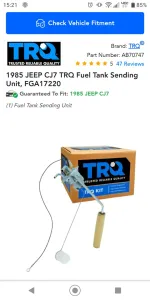

I can't find the one I got it was 3 years ago. However after doing some searching I think this may work for you. (I can't guarantee that it's a 3/8" outlet though) however even if it's only 5/16 it's more than adequate for your motor even more so if you're running a carburetor.
Sent from my E7110 using Tapatalk
Sent from my E7110 using Tapatalk
CJ
Admin
- Posts
- 21,676
- Thanks
- 617
- Location
- Central FL
- Vehicle(s)
- '72 CJ5, 401, T18, D20, D44, D30
'82 CJ8, 258, D300, AMC20, D30
I can't find a non FI pickup / Sender that specifies 3/8 either (Jeep CJ specific with an in tank pump). You can always get an universal 3/8 and bend / trim / modify as needed.
pablo fank
Jeeper
Are you going FI? Sounds like your using a carb.
You can get a replacement 3/8 stainless line kit like this one
and buy a replacement FI sending unit. The problem with the FI sending unit is that it has an in tank pump.1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8
1980-86 Jeep CJ7 (w/Chevrolet V8) Tank to Pump 3/8" (Oversized) Main Fuel Line 1pc, OE Steel
It's easy to pull your sender and bend up a 3/8 pickup tube, remove your old 5/16 tube, drill out the hole and weld in the new tube. You can also drill a new hole and have one 3/8 and one 5/16 pickups but only use the 3/8.
You can also ditch the mechanical pump, use the FI in tank pump and add a regulator.
As I stated in my starting post-"engine mechanical fuel pump".
The FGA 17220 has a 5/16" pickup. I decided to modify my old unit. I will get a piece of 3/8" stainless steel tubing from"INLINE TUBE". They will form the tubing bead on the end for me. I'll remove the old 5/16" pickup with my Dremel and tig weld the new 3/8" pickup on the unit. This way there will be 3/8" fuel line all the way from the tank to the engine. Thanks for the great help Manic Mechanic. BTW- The cheapass plastic float already has a hole in it!!I can't find the one I got it was 3 years ago. However after doing some searching I think this may work for you. (I can't guarantee that it's a 3/8" outlet though) however even if it's only 5/16 it's more than adequate for your motor even more so if you're running a carburetor.
Sent from my E7110 using Tapatalk
I'll try to find a brass float.
CJ
Admin
- Posts
- 21,676
- Thanks
- 617
- Location
- Central FL
- Vehicle(s)
- '72 CJ5, 401, T18, D20, D44, D30
'82 CJ8, 258, D300, AMC20, D30
That's what I did with my pickup, weld in 3/8. I ran 3/8 aluminum line from the tank to the engine compartment because a 3/8 kit wasn't available like it is now.
