I finally upgraded my ignition. Actually I did it a week ago. I decided to go with the TeamRush upgrade. I'm glad I did. It consists of upgrading the distributor cap and spark plug wires. This upgrade makes sure the spark energy goes where it is intended, to the spark plugs. With the smaller OEM distributor it is possible to get cross fire in the distributor where a spark goes to the wrong cylinder or a spark going down to a ground. Once the distributor was upgraded I installed a MSD series 6 ignition module. DO NOT install a high performance ignition module without upgrading the distributor. The OEM distributor has a hard enough time getting the spark to the correct spark plug.


Coil
Replacing the coil is optional. The TeamRush upgrade allows you to either keep the stock coil or replace it with an after-market. I already have a MSD Blaster High Vibration coil. My last coil shorted out and it may have been from getting bumped around off-road. Most coils are oil filled. It is possible for the wires inside the coil to bump around and short out. The MSD Blaster High Vibration coil is epoxy resin filled and can handle more banging around. Also it doesn't need to be mounted upright.



I prefer canister coils. They offer stronger, high current sparks at low rpm.


Distributor Cap
As long as your CJ was made after 1977 you have a Motorcraft Distributor. These distributors can benefit from a larger distributor cap intended for a ford.
I bought the MSD Ford V8 Cap-Adapt kit for $36. (MSD Part 8414)
If you want to save a few dollars and get an OEM distributor cap just make sure it's good quality with brass terminals. You can get a distributor cap, rotor and cap adapter for a stock 1980 Ford F150 with a V8. The cap adapter fits over the distributor but flairs out big enough for the larger cap to fit on.

If you have a strait six in your Jeep you can look up the parts for the same year Ford F150 but with a 300 strait six.

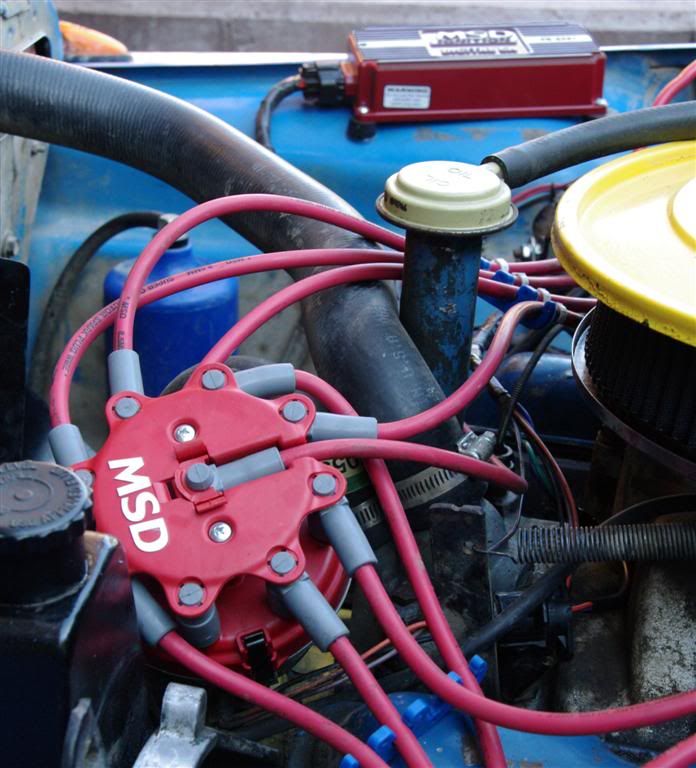

To install this Ford Distributor Cap, it just snaps on like it was meant for your Jeep. No instructions necessary. (Actually it is a Ford Motorcraft Distributor in your Jeep)
These distributor caps have different terminals so you will need new wires.


Wires
I already had nice MSD wires for my OEM distributor but now I had to replace the wire ends at the distributor end. I bought the MSD crimp on ends. I cut the end off my wires and crimped on the new ends. The ends I got were MSD part 3330. These come with 2 in a package so I bought 5. (8 spark plug wires and one coil wire) This left me with one extra connector.
For everyone else that doesn't already have MSD wires you will need MSD part 5551 if you have a V8 or if you have a strait 6 you can get Motorcraft spark plug wires (part WR4050). These Motorcraft wires are ready to be installed.

These MSD wires (PN 5551) require you to crimp the ends on yourself. Trust me, it is very easy to do this right. The MSD wires already come with the MSD Mini-Crimper. The new style connectors use what MSD calls a Dual-Crimp. The connector has one section that crimps onto the insulation to physically hold the connector on. Then there is a smaller crimp section that only crimps onto the conductor part in the center of the wire. This part is crimped on with needle nose pliers. When I first realized I needed to use needle nose pliers I regretted not buying an expensive crimping tool. The first rule for crimping connectors is to use the right tool and never use needle nose pliers. Well, in this case needle nose pliers are the right tool. These connectors were meant to be used with needle nose.

.

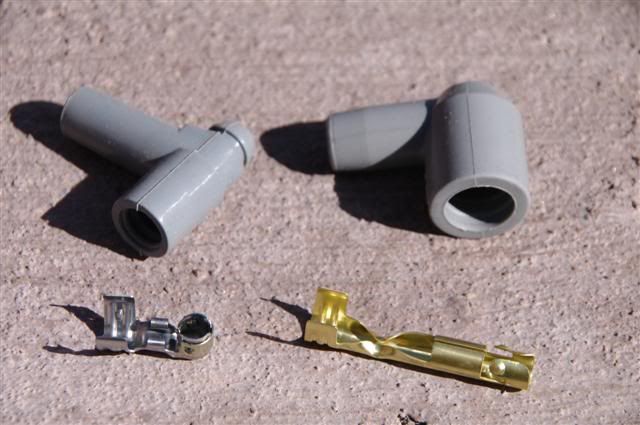

On the left is the new style Dual-Crimp Connector. On the right is the old style.
The first step is to cut the wire to the correct length. I then use the MSD Mini-Crimper to strip the wire. Put the wire into the correct hole on the Mini-Crimper/stripper. There are 2 holes: one for 8 mm wires and one for 8.5 mm wires.

I put the wire up to a marking for Dual-Crimp connectors. Then I use a razor blade to cut off through the insulation. This small section of insulation then twists off.

Next I crimpped the connector onto the wire. If you have the newer style Dual-Crimp connectors you will crimp in two steps. First crimp the connector to the insulation. To do this you will use a vise to do the crimping.

Pull on the connector to make sure you have a good crimp. Next use needle nose pliers to crimp the conductor.

Once the connector is on the wire apply dielectric grease to the connector and press it into the boot.


Timing Advance Springs
This part is completely optional. These advance springs are in the distributor. They hold the advance weights. I put in lighter springs to allow the timing to advance at lower RPM. I used Mr.Gasket #925D springs following the advice on JunkYardGenius.com.

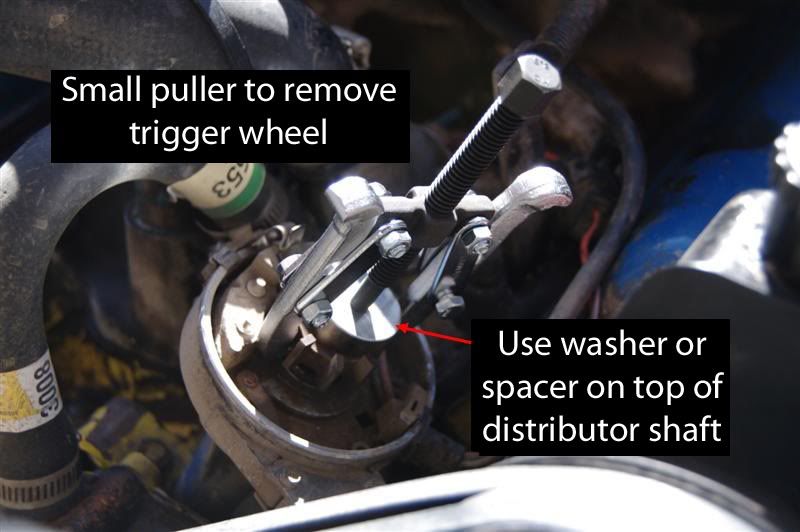

To get down to the advance springs remove the distributor cap. Next you have to remove the reluctor (trigger wheel) from the distributor. Some pry it off with 2 screw drivers but I found it very easy to remove with a small 2 arm puller.

Next the pickup assembly will be removed. Now you can see the advance springs.

These springs do not have to match. You can have one firm spring and one medium spring or any other combination. The springs work together to try to keep the weights from swinging outward at low rpm. When the weights are outward the timing is fully advanced.
The inside of the distributor can be cleaned with a spray can of electrical contact cleaner.


CDI Ignition Module
The stock ignition system uses the inductance of the coil to produce the high voltage spark. To get the next big jump in ignition performance you can install a CDI ignition module. CDI stands for Capacitor Discharge Ignition. MSD makes some of the best selling CDI modules. You will want to get an MSD series 6 ignition module such as the Digital 6A, 6AL or the 6 Off Road. I got the 6A (MSD part # 6201). The 6AL is similar except it also has a built in rev limiter. The 6 Off-Road is water proofed.

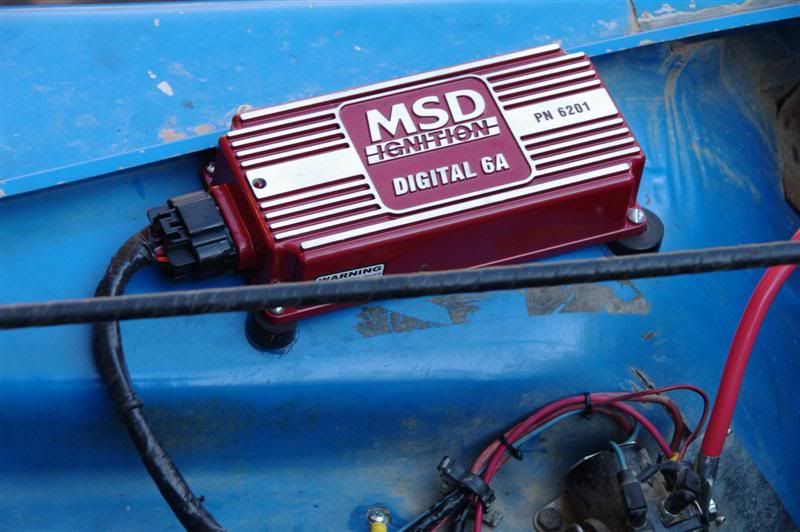

I mounted my MSD ignition module on the passenger front inner fender. All the wires are plenty long. In most cases too long. I shortened the wires and re-crimped ends back on. If you are not comfortable crimping the wire ends just keep them full length and tie wrap up the extra. The MSD ignition module I got included an extension for the wires to distributor.
Others that have done this modification have recommended you keep the OEM distributor connector and not cut the wires in case the MSD module fails. That sounded like a good idea to me since I do a lot of four-wheeling on remote mountain trails but you will also have to reconnect the coil back up with the OEM wires. To do this you should also keep the wiring diagram in your Jeep so you will know how to uninstall the MSD ignition.
I couldn't find an MSD wiring diagram for this application so I made one based on one of their other diagrams. The JunkYardGenius (JeepHammer) gets credit for the design.


The heavy gauge black and the red wires need to go directly to the battery or to the end of the battery cable. For example the positive battery cable connects to the starter solenoid on the inner fender. This is where I connected the large red wire in the MSD harness.
I use dielectric grease on all connections.



Spark Plugs
With the ignition system upgraded you can now run your spark plugs with a wider gap. I used Autolite Copper Core spark plugs. It's part number 65 for my V8. If you have a strait 6 get Autolite part number 985. These are the regular spark plugs intended for the AMC engines. Champion also makes good spark plugs.
The plugs can be gapped to .045 to .050. Use the correct gapping tool. Don't use a gap measuring coin to pry open the gap.

When installing the spark plugs use copper anti-seize. Then when you install the spark plug wires use dielectric grease.


Next check the timing.

That's it! Now you've got better performance, gas mileage and easier starting especially in the cold. These mods don't have to be done all at once. You can do the distributor cap and spark plug wires alone.


Credits: Once again I have to thank the JunkYardGenius (JeepHammer) for the idea.
__________________
Busa

Click here to see my '79 CJ5

Last edited by BusaDave9; 02-05-2012 at 08:06 PM.. Reason: Lost all spaces between words. Also forgot an image.



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote
The Following 11 Users Say Thank You to BusaDave9 For This Useful Post:
ar78cj7 (04-24-2014), cass (01-23-2012), CJ (10-31-2011), Coffeebuzz (09-30-2013), jeepboy45 (11-06-2011), Jeepsrule (01-24-2012), JJs85cj (05-19-2012), JR74CJ5 (11-08-2011), Papa Bear (03-15-2013), powdertwoplanker (12-30-2012), Purple77CJ7 (10-30-2011)
Register as a Member and remove this add!

Vote for Jeep-CJ.com daily!
Vote for Jeep-CJ.com

Default Re: TeamRush Ignition Upgrade

Old 10-30-2011, 09:19 PM   #2
Purple77CJ7 is offline
Purple77CJ7
Old Time Jeeper
Vehicle(s): 1977 CJ 7; Amc 401 .30 over, Howell TBI, modified Dana 20 with Terra Low gears and twin sticks, NV 4500 5-speed, modified Dana 30 and Amc 20 both with 4.56 gears (narrow track), ARB air lockers front and rear, SSBC rear disc brake conversion, MICO Brake park brake, Navaho brake booster/ master cylinder, PowerTank CO2 tank.

Purple77CJ7's Avatar

Join Date: Jun 2011
Location: Loveland, Colorado
Age: 54
Posts: 1,165
Images: 37
Thanks: 65
Thanked 91 Times in 80 Posts
Rep Power: 5 Purple77CJ7 is on a distinguished road
Really good write up BusaDave9!



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 10-30-2011, 09:25 PM   #3
Niedhogg is offline
Niedhogg
Senior Jeeper
Vehicle(s): '79 Jeep CJ7 Renegade with 304ci V8, TH400 auto, Quadratrac T-case, Stock 20 and 30 rears with no mods yet, not sure of the gear ratio.. 4" Softride Superlift, w/widetrac shock towers and 35x12.50x15 BFG Mud-Terrains '76 CJ5, 232 ci, T-150 3-speed, D20 T-case, Corp. 20 rear w/full float axles and lockout hubs and Detroit auto locker, D30 front w/lockout hubs, gear ratio is unknown..

Niedhogg's Avatar

Join Date: Aug 2011
Location: Thor, Iowa
Age: 49
Posts: 703
Thanks: 7
Thanked 16 Times in 15 Posts
Rep Power: 4 Niedhogg is on a distinguished road
Very good write up, Busa. Good to see another option. I have already installed an HEI set up in mine, so we'll see how that goes. I am building another engine this winter, and I'm seriously considering this upgrade for it, and I'll have something to compare it against.
__________________
This is my Jeep. There are many others like it, but this one is mine...'79 CJ7 Renegade, 304-V8, TH400, Qtrac t-case, 4" Superlift, 35" Mud-Terrains.. oooh yeaaa...



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 10-31-2011, 03:40 PM   #4
Petescj is online now
Petescj
shooting for 10K posts!
Vehicle(s): 1981 CJ LAREDO. 258 , TF-999 with a Dana 300. 4in. spring lift with 35s and 1 piece rear axles. 1983 CJ-7 LIMITED. Awaiting a Chevy 350 ,SM-465 with the Dana 300 T-case. Under a full frame off resto mod.

Petescj's Avatar

Join Date: Mar 2009
Location: PA
Age: 44
Posts: 9,716
Images: 206
Thanks: 543
Thanked 696 Times in 546 Posts
Rep Power: 15 Petescj is on a distinguished road
Well now you took it up a notch. Always liked this upgrade. It really helped my Cj-7
__________________



My 83 CJ-7 Limited Build: http://www.jeep-cj.com/forums/f98/pr...limited-17143/

My 81 CJ-7 Laredo Build: http://www.jeep-cj.com/forums/f98/81...o-build-18126/



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 11-03-2011, 09:37 PM   #5
BusaDave9 is offline
BusaDave9
Admin
Vehicle(s): 1979 Jeep CJ5 with 304 V8, T18 Transmission, Dana 20 Transfer case with TeraLow 3:1 gears, 4.88 axle gears, Detroit Locker up front and Ox Locker in back with 1 piece axle shafts, 36" SuperSwamper SX Tires, Shackle reversal, MileMarker Hydraulic winch, MSD 6A ignition.

BusaDave9's Avatar

Join Date: Jan 2010
Location: Durango, Crawlarado
Age: 53
Posts: 3,949
Images: 353
Thanks: 216
Thanked 970 Times in 651 Posts
Rep Power: 10 BusaDave9 will become famous soon enough
Spark Plugs
I need to make some corrections and clarifications.
If you installed the larger distributor cap, wires and
MSD series 6 ignition module you can now gap your plugs to .045" to .050".
These high performance ignition modules can produce much higher voltages to arc across a wider gap. They also have the ability to maintain higher current. With the 6A Ignition control MSD recommends you gap your plugs at .050" to .060".
The problem is the manufacturers don't recommend you gap the plugs any more than .008 larger or smaller than they were originally set at. This is because the ground electrode would no longer be flat above the center electrode.
Since the plugs for my V8 come with a .035" gap they wouldn't work. I did some searching to find different plugs. I found that Autolite 646 plugs come with a .059" gap but are otherwise similar to the Autolite 65 plugs that normally install in the 304. I plan on getting a set of those for my V8 but I plan on decreasing the gap before installing them.


BTW if you want to get spark plugs that are similar to OEM except have one trait (such as gap) that is different then check out this link:
Tuning information: spark plug construction, heat range, indexing, gap settings, plug torque, racing plug information at ChampionSparkPlugs.com
It lets you search by whatever criteria you want: gap, heat range, thread size, ect.



__________________
Busa

Click here to see my '79 CJ5

Last edited by BusaDave9; 05-21-2013 at 02:59 PM..



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote
The Following 2 Users Say Thank You to BusaDave9 For This Useful Post:
Jeepsrule (01-24-2012), JR74CJ5 (11-04-2011)

Default Re: TeamRush Ignition Upgrade

Old 11-04-2011, 12:14 PM   #6
JR74CJ5 is offline
JR74CJ5
Full Time Jeeper
Vehicle(s): 1974 CJ5 ~ 304 V8 (DUI distributor upgrade) NEW cam and distributor gear set by MSD - SM420 - Dana 20 TC - Dana 30 F Warn Prem. Lock-outs with Stage 8 locking hub bolts and 44 R - 4.27 Gear Ratio's - Running 33" BFG Mud-Terrain T/A KM2 Tires - Tilt / Power Steering - Hooker Super Competition Tuned Fenderwell Headers w/ Thrush "Super Hush" Mufflers and Stage 8 Locking Header Bolts - Warn M8000 Winch - Hydraulic Clutch Conversion - 3-1/2" OME YJ Lift Spring Conversion

JR74CJ5's Avatar

Join Date: Jan 2011
Location: Sacramento, CA
Age: 30
Posts: 2,128
Images: 80
Thanks: 1,088
Thanked 248 Times in 198 Posts
Rep Power: 6 JR74CJ5 is on a distinguished road
As always Busa,

Now how about any special anti seize or anything for larger gaped plug running. I had read another members post mentioning something of this nature.

Is it just a given you use the anti seize all the time, or any research you've completed that mentions this at all?

Just wondering.

I thank you for this information just added as well, because i had just done a slightly similar (DUI and MSD) upgrade, and reset sparkplug gaps instead of buying new ones.

What does this cause? Poor running conditions, un even spark? etc?





~ JR
__________________

JR - EVC3



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 11-04-2011, 06:49 PM   #7
dalefan88 is offline
dalefan88
Full Time Jeeper
Vehicle(s): 79 cj5 258, t150, dana 20 transfer case, dana 30 front, 20 rear,warn hubs,2.5" procomp lift,teamrush,msd box,mc2100 carb,hedman header,clifford intake,optima battery, ford shock towers.

dalefan88's Avatar

Join Date: Jan 2009
Location: ada,oh
Age: 36
Posts: 1,780
Images: 29
Thanks: 35
Thanked 33 Times in 33 Posts
Rep Power: 7 dalefan88 is on a distinguished road
good write up. i did this to my 258 and well worth it. i went with a msd blaster 3 coil and a streetfire (msd econo brand) box. the strretfire has two dials on this side to adjust the rev limiter.
__________________
you cant fix stupid. Ron White



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 11-04-2011, 07:38 PM   #8
BusaDave9 is offline
BusaDave9
Admin
Vehicle(s): 1979 Jeep CJ5 with 304 V8, T18 Transmission, Dana 20 Transfer case with TeraLow 3:1 gears, 4.88 axle gears, Detroit Locker up front and Ox Locker in back with 1 piece axle shafts, 36" SuperSwamper SX Tires, Shackle reversal, MileMarker Hydraulic winch, MSD 6A ignition.

BusaDave9's Avatar

Join Date: Jan 2010
Location: Durango, Crawlarado
Age: 53
Posts: 3,949
Images: 353
Thanks: 216
Thanked 970 Times in 651 Posts
Rep Power: 10 BusaDave9 will become famous soon enough
Quote:
Originally Posted by JR74CJ5 View Post
Now how about any special anti seize or anything for larger gaped plug running. I had read another members post mentioning something of this nature.

Is it just a given you use the anti seize all the time, or any research you've completed that mentions this at all?
The issue with spark plugs is you need a good ground. You want to use copper anti-seize for spark plugs because it is conductive and can withstand the high temperatures of the engine head.
Some spark plug manufacturers claim to coat the spark plugs with an anti-seize. It is not a liquid and I am not convinced it is as good as a separate copper based anti-seize.

You want to be careful about increasing the spark plug gap. You need to make sure your ignition can produce the voltage to span the gap. Even if it can produce the voltage the ignition may not be able to maintain much current. A strong high current spark across a small gap is better than a weak low current spark across a wide gap.
If you have installed an MSD Series 6 ignition module your ignition can produce a much stronger spark but you need to make sure you can get the spark to the spark plug. That's why I say you shouldn't install an MSD ignition on an OEM distributor. The sparks may just find a way to ground inside the distributor cap. Even then you can loose the spark from poor spark plug wires. It is easy to test the conductor of a spark plug wire with an ohm meter. It's not as easy to test the insulator of a spark plug wire. Even the insulation of a bad spark plug wire is still too high to read with an ohm meter. One way to check a spark plug wire insulation is to watch it in the dark. Unless you have new or high performance spark plug wires I think everyone should watch their engine run in the dark. If the insulation has failed you will see sparks go from the spark plug wire to the valve cover or any other ground metal. Try it, you may be surprised.
If you have a MSD Series 6 ignition module then you should increase the gap on your spark plugs. That is as long as you have good spark plug wires and distributor. Yes, the HEI distributor can handle the higher voltages.

If you try to increase the gap of a spark plug too much then the spark would go from the edge of the center electrode to the ground electrode. You are better off with a spark plug that starts off with a wider gap before re-gapping. I admit I have gapped spark plugs more than .010 than what the manufacturer made them but I haven't done any systematic testing.
__________________
Busa

Click here to see my '79 CJ5



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote
The Following 2 Users Say Thank You to BusaDave9 For This Useful Post:
Jeepsrule (01-24-2012), JR74CJ5 (11-04-2011)

Default Re: TeamRush Ignition Upgrade

Old 11-06-2011, 12:15 AM   #9
jeepboy45 is offline
jeepboy45
Senior Jeeper
Vehicle(s): 1979 CJ-7, Newly rebuilt AMC 360!, fully rebuilt GM TH400, Quadra-trac TC w/Milemarker 2x4 conversion, AMC mod 20 rear w/1 piece Moser axleshafts, mod 30 front w/tie rod flip and castor correction shims, 4 in lift, Centech complete wiring harness, dual electric fans on 3 core aluminum radiator, tilt steering wheel, 20 gal poly gas tank, new J20 steering box, MSD 6A ignition combined with TeamRush distributor mods

jeepboy45's Avatar

Join Date: Oct 2011
Location: Altamonte Springs, Florida
Age: 45
Posts: 634
Thanks: 21
Thanked 41 Times in 33 Posts
Rep Power: 4 jeepboy45 is on a distinguished road
Nicely done Dave....
I like the option of the MSD cap.
Went to the junk yard and couldnt find the correct year Ford to get parts to save my life.

Once my Jeep hits the street again in a few days, I'm gonna follow your path...

thanks Dave for bringing this mod up again,
and thanks to JeepHammer for the initial mod..
__________________
Support our most important freedom, freedom to bear arms
DVC -- Diligentia, Vis, Celeritas



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote

Default Re: TeamRush Ignition Upgrade

Old 11-06-2011, 06:52 AM   #10
BusaDave9 is offline
BusaDave9
Admin
Vehicle(s): 1979 Jeep CJ5 with 304 V8, T18 Transmission, Dana 20 Transfer case with TeraLow 3:1 gears, 4.88 axle gears, Detroit Locker up front and Ox Locker in back with 1 piece axle shafts, 36" SuperSwamper SX Tires, Shackle reversal, MileMarker Hydraulic winch, MSD 6A ignition.

BusaDave9's Avatar

Join Date: Jan 2010
Location: Durango, Crawlarado
Age: 53
Posts: 3,949
Images: 353
Thanks: 216
Thanked 970 Times in 651 Posts
Rep Power: 10 BusaDave9 will become famous soon enough
Quote:
Originally Posted by jeepboy45 View Post
I like the option of the MSD cap.
Went to the junk yard and couldn't find the correct year Ford to get parts to save my life.
You can use the distributor cap from any Ford V8 from '75 to '84 but I wouldn't get the distributor cap or rotor from the junk yard.
Rock Auto has a cap for $17
1980 FORD F-150 Distributor Cap
They have the rotor for $4
1980 FORD F-150 Distributor Rotor
and a distributor cap adaptor for $4
http://www.rockauto.com/catalog/x,ca...parttype,10738
__________________
Busa

Click here to see my '79 CJ5



Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!Stumble this Post!
Reply With Quote
Reply

Bookmarks

Tags
amc, ignition, ignition upgrade, jeep, msd, teamrush, upgrade


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On

Similar Threads
Thread Thread Starter Forum Replies Last Post
Starting final phase of teamrush upgrade...suggestions... Jeepsrule Drivetrain 8 12-24-2012 11:38 AM
82 CJ7 ignition upgrade fzsk4p Drivetrain 8 05-03-2011 01:42 AM
151 ci Ignition Upgrade bcalvers Drivetrain 0 03-24-2011 06:56 PM
ignition upgrade?? plumcrazy Chassis and Body 5 10-13-2009 12:04 PM
Doing a TeamRush Upgrade. kicknjeep Chassis and Body 15 05-25-2009 05:08 PM


Vote for Jeep-CJ.com
